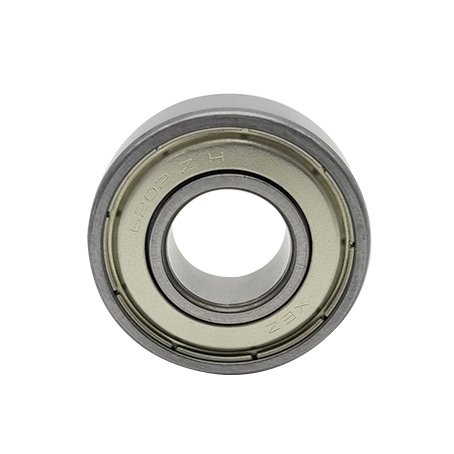

XEZ has been engaged in precision deep groove ball bearings since 1988. 6200 series and 6300 series are the daily produced models in our factory. XEZ Z3V3, Z4V4 quality bearings are widely used in household appliances, such as fans, washing machines, luxury decorating fans. Daily output 70000 pcs per day.
| Dimension | 15*35*11mm |
|---|---|
| Limted Speed | 18000RPM |
| Weight | 0.045KG |
| Level | Z3V3, Z4V4 |
XEZ 6200 series is one of the most representative bearings in deep groove ball bearings. XEZ is producing high precision bearings in Z3V3, Z4V4 quality, which is widely used in household appliances, such as fans, washing machines, luxury decorating fans.
TECHNICAL DETAILS
Except 6202, XEZ also supplies other sizes ranging from ID9-100mm, please see the below chart for more sizes information.
| Model | Id | OD | B | Weight m | Rated load C | Rated load C0 | Speed data n grease |
|---|---|---|---|---|---|---|---|
| 628/9 | 9 | 17 | 5 | 0.0042 | 1.6 | 0.72 | 28000 |
| 629 | 9 | 26 | 8 | 0.019 | 4.45 | 1.95 | 22000 |
| 6200 | 10 | 30 | 9 | 0.032 | 5.1 | 2.38 | 20000 |
| 6201 | 12 | 32 | 10 | 0.035 | 6.82 | 3.05 | 19000 |
| 6202 | 15 | 35 | 11 | 0.045 | 7.65 | 3.72 | 18000 |
| 6203 | 17 | 40 | 12 | 0.064 | 9.58 | 4.78 | 16000 |
| 6204 | 20 | 47 | 14 | 0.103 | 12.8 | 6.65 | 14000 |
| 6205 | 25 | 52 | 15 | 0.127 | 14 | 7.88 | 12000 |
| 6206 | 30 | 62 | 16 | 0.2 | 19.5 | 11.5 | 9500 |
| 6207 | 35 | 72 | 17 | 0.288 | 25.5 | 15.2 | 8500 |
| 6208 | 40 | 80 | 18 | 0.368 | 29.5 | 18 | 8000 |
| 6209 | 45 | 85 | 19 | 0.416 | 31.5 | 20.5 | 7000 |
| 6210 | 50 | 90 | 20 | 0.463 | 35 | 23.2 | 6700 |
| 6211 | 55 | 100 | 21 | 0.603 | 43.2 | 29.2 | 6000 |
| 6212 | 60 | 110 | 22 | 0.789 | 47.8 | 32.8 | 5600 |
| 6213 | 65 | 120 | 23 | 0.99 | 57.2 | 40 | 5000 |
| 6214 | 70 | 125 | 24 | 1.084 | 60.8 | 45 | 4800 |
| 6215 | 75 | 130 | 25 | 1.171 | 66 | 49.5 | 4500 |
| 6216 | 80 | 140 | 26 | 1.448 | 71.5 | 54.2 | 4300 |
| 6217 | 85 | 150 | 28 | 1.803 | 83.2 | 63.8 | 4000 |
| 6218 | 90 | 160 | 30 | 2.17 | 95.8 | 71.5 | 3800 |
| 6219 | 95 | 170 | 32 | 2.62 | 110 | 82.8 | 3600 |
| 6220 | 100 | 180 | 34 | 3.19 | 122 | 92.8 | 3400 |
| 6221 | 105 | 190 | 36 | 3.78 | 133 | 105 | 3200 |
| 6222 | 110 | 200 | 38 | 4.42 | 144 | 117 | 3000 |
| 6224 | 120 | 215 | 40 | 5.3 | 155 | 131 | 2600 |
| 6226 | 130 | 230 | 40 | 6.12 | 165 | 148 | 2400 |
| 6228 | 140 | 250 | 42 | 7.77 | 179 | 167 | 2000 |
| 6230 | 150 | 270 | 45 | 9.78 | 203 | 148 | 1900 |
