Double Row NN Series

XEZ has been engaged in precision deep groove ball bearings since 1988. 6200 series and 6300 series are the daily produced models in our factory. XEZ Z3V3, Z4V4 quality bearings are widely used in household appliances, such as fans, washing machines, luxury decorating fans. Daily output 70010 pcs per day.

NN double row series and N single row series, with compact structure, low noise, high-temperature resistance, inner/outer ring can be separate, easy for assembly. Widely used for big-size and middle-size motors, machine tool spindles, etc…

Additional information

Model	30 Series
Inner diameter range	30-150mm
Cage material	Brass, Nylon
Level	P4

Product Details:

Super precision cylindrical roller bearings are often used in machine tools and printing machinery for applications requiring high precision. Because the linear expansion generated during operation can be compensated by the float between the roller and the raceway, they are ideal floating bearings. Due to the characteristics of high precision and high radial stiffness, superfine cylindrical roller bearings can not only be used as floating bearings but also used in bearing arrangements with the following requirements:

Radial stiffness
High carrying capacity
High precision

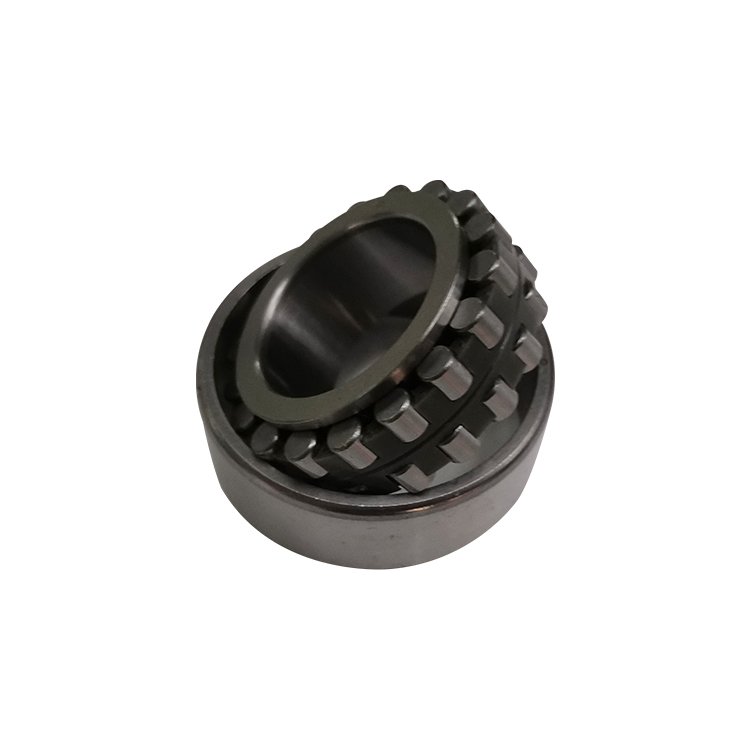

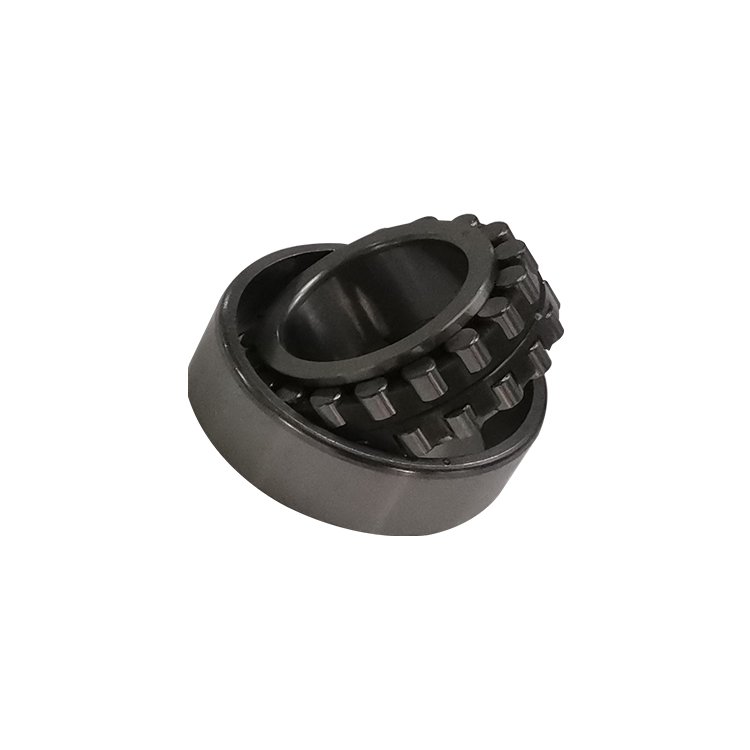

The double-row NN30 is an inner ring guide roller, and the outer ring has a grinding cylindrical profile and is removable. The design is in accordance with the following standards:

Accuracy class SP
Taper inner hole (taper 1:12), the required preload or radial clearance can be adjusted by the inner ring on the shaft support position; (for special requirements) or cylindrical inner hole

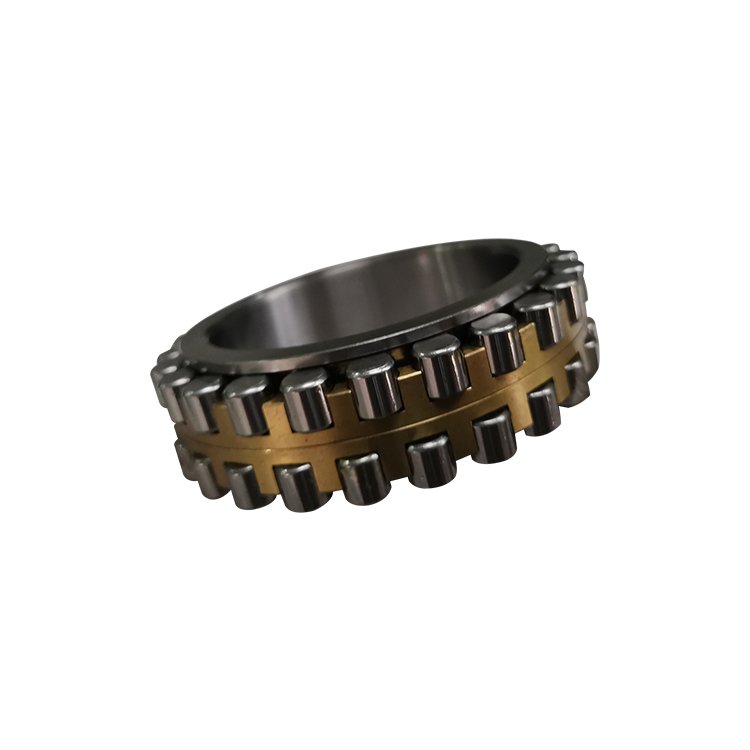

Solid brass cage or PEEK cage
Radial clearance C1.

XEZ Bearing Model	d	D	B	r	E	Rated load Ca(KN)	Rated load Coa(KN)	Limited speed Grease(r/min)	Limited speed Oil(r/min)	Weight(kg)	Cage
NN3006	30	55	19	1	48.5	31	37	17700	21200	0.198	brass
NN3006T	30	55	19	1	48.5	31	37	20000	23600	0.172	nylon
NN3007	35	62	20	1	55	39.5	50	15500	18600	0.258	brass
NN3007T	35	62	20	1	55	39.5	50	17600	20700	0.224	nylon
NN3008	40	68	21	1	61	43.5	55.5	13900	16700	0.309	brass
NN3008T	40	68	21	1	61	43.5	55.5	15800	18600	0.283	nylon
NN3009	45	75	23	1	67.5	52	68.5	12500	15000	0.407	brass
NN3009T	45	75	23	1	67.5	52	68.5	14200	16700	0.373	nylon
NN3010	50	80	23	1	72.5	53	72.5	11600	13900	0.436	brass
NN3010T	50	80	23	1	72.5	53	72.5	13100	15400	0.402	nylon
NN3011	55	90	26	1.1	81	69.5	96.5	10400	12500	0.647	brass
NN3011T	55	90	26	1.1	81	69.5	96.5	11800	13800	0.592	nylon
NN3012	60	95	26	1.1	86.1	73.5	106	9700	11700	0.693	brass
NN3012T	60	95	26	1.1	86.1	73.5	106	11000	13000	0.635	nylon
NN3013	65	100	26	1.1	91	77	116	9100	11000	0.741	brass
NN3013T	65	100	26	1.1	91	77	116	10400	12200	0.681	nylon
NN3014	70	110	30	1.1	100	97.5	143	8000	10000	1.06	brass
NN3014T	70	110	30	1.1	100	97.5	143	9500	11200	0.988	nylon
NN3015	75	115	30	1.1	105	96.5	149	7900	9500	1.11	brass
NN3015T	75	115	30	1.1	105	96.5	149	9000	10600	1.03	nylon
NN3016	80	125	34	1.1	113	119	186	7400	8800	1.54	brass
NN3016T	80	125	34	1.1	113	119	186	8300	9800	1.44	nylon
NN3017	85	130	34	1.1	118	122	194	7000	8400	1.63	brass
NN3017T	85	130	34	1.1	118	122	194	8000	9400	1.52	nylon
NN3018	90	140	37	1.5	127	143	228	6600	7900	2.09	brass
NN3018T	90	140	37	1.5	127	143	228	7400	8700	1.93	nylon
NN3019	95	145	37	1.5	132	146	238	6300	7500	2.19	brass
NN3019T	95	145	37	1.5	132	146	238	7100	8400	2.03	nylon
NN3020	100	150	37	1.5	137	149	247	6000	7200	2.28	brass
NN3020T	100	150	37	1.5	137	149	247	6800	8000	2.12	nylon
NN3021	105	160	41	2	146	192	310	5700	6800	2.88	brass
NN3021T	105	160	41	2	146	192	310	6500	7600	2.69	nylon
NN3022	110	170	45	2	155	222	360	5400	6500	3.71	brass
NN3022T	110	170	45	2	155	222	360	6100	7200	3.44	nylon
NN3024	120	180	46	2	165	233	390	5000	6000	4.04	brass
NN3024T	120	180	46	2	165	233	390	5700	6700	3.75	nylon
NN3026	130	200	52	2	182	284	475	4600	5500	5.88	brass
NN3028	140	210	53	2	192	298	515	4300	5200	6.34	brass
NN3030	150	225	56	2.1	206	335	585	4000	48000	7.76	brass
