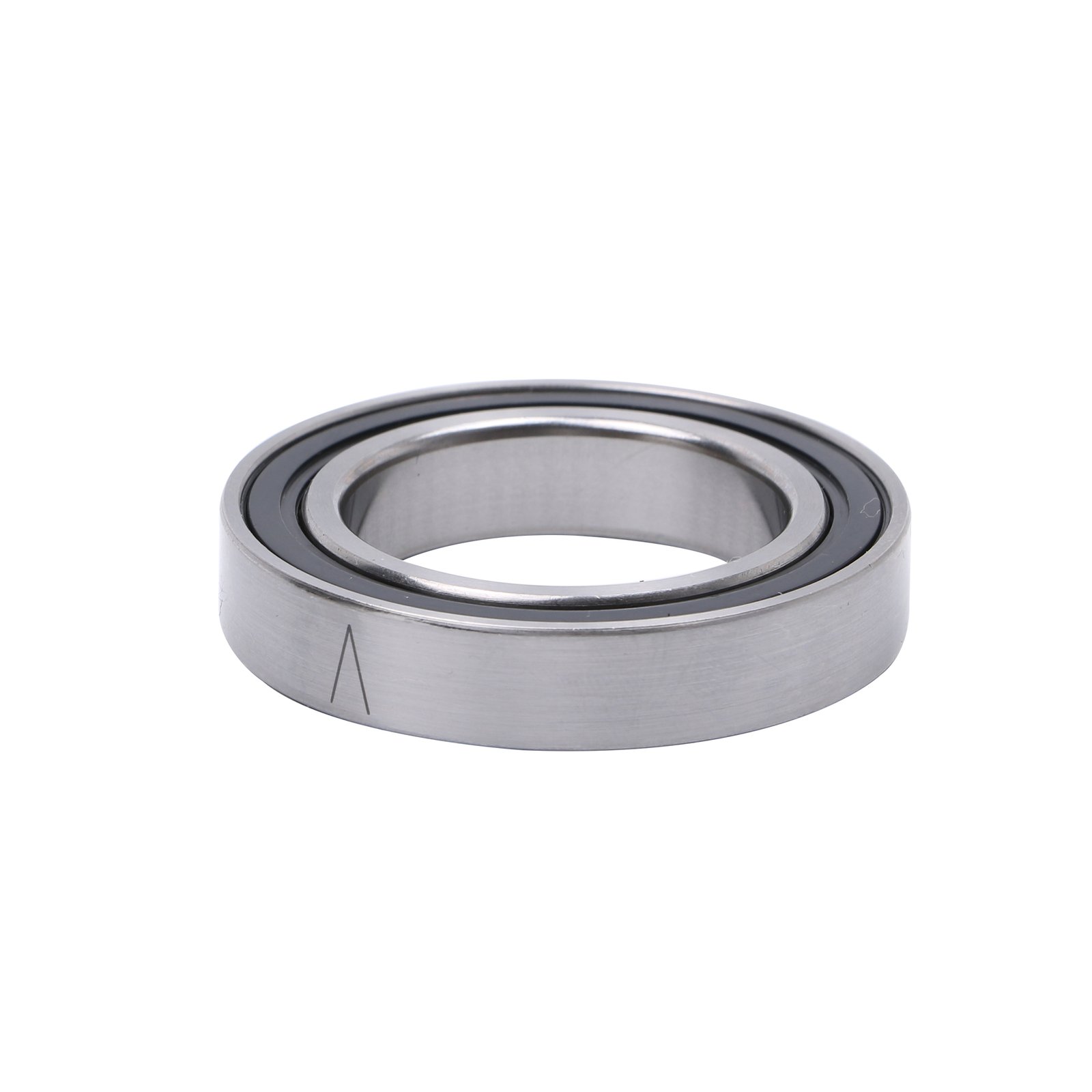

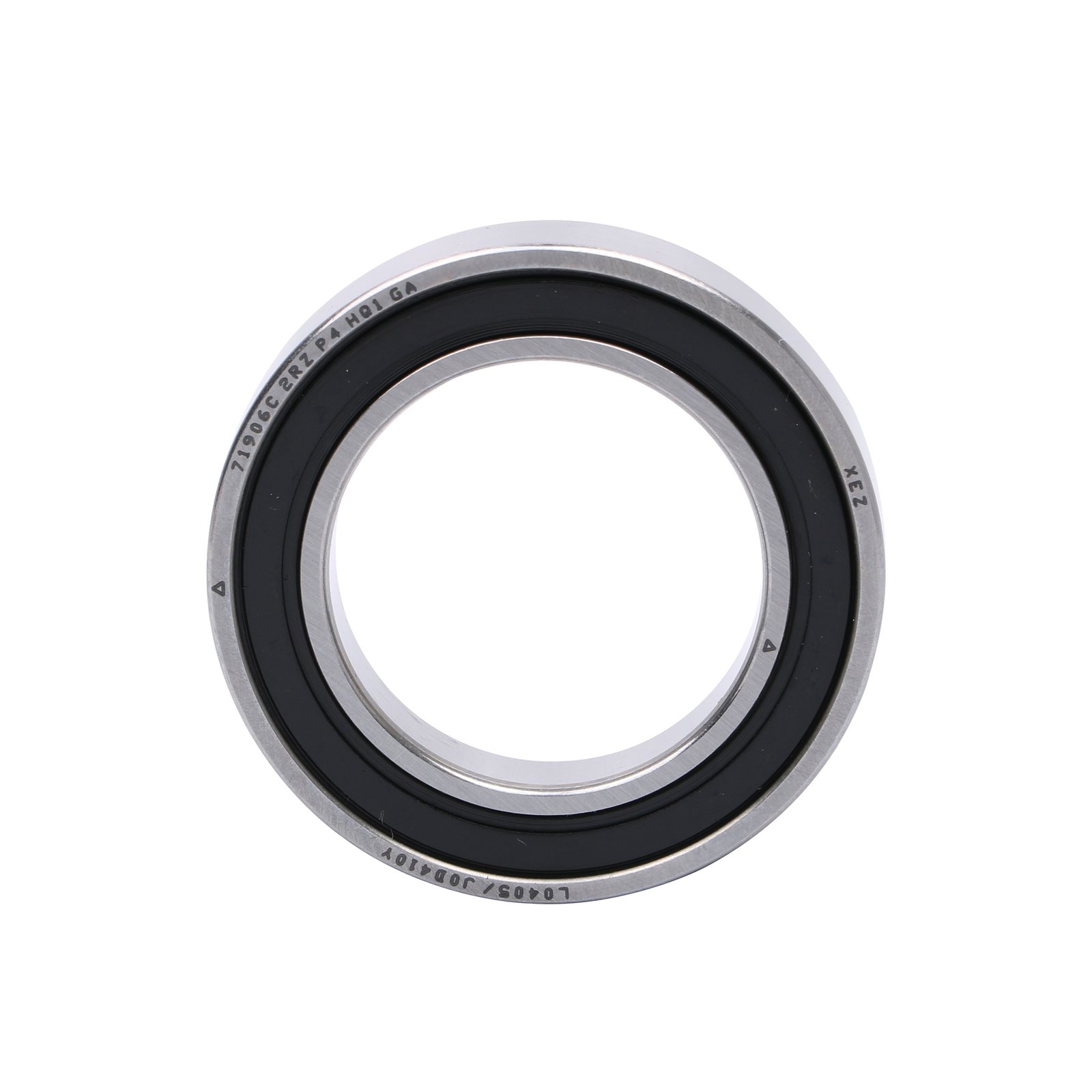

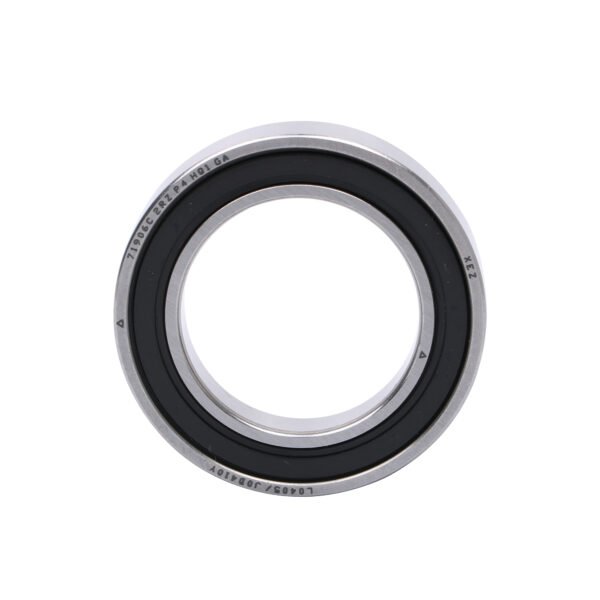

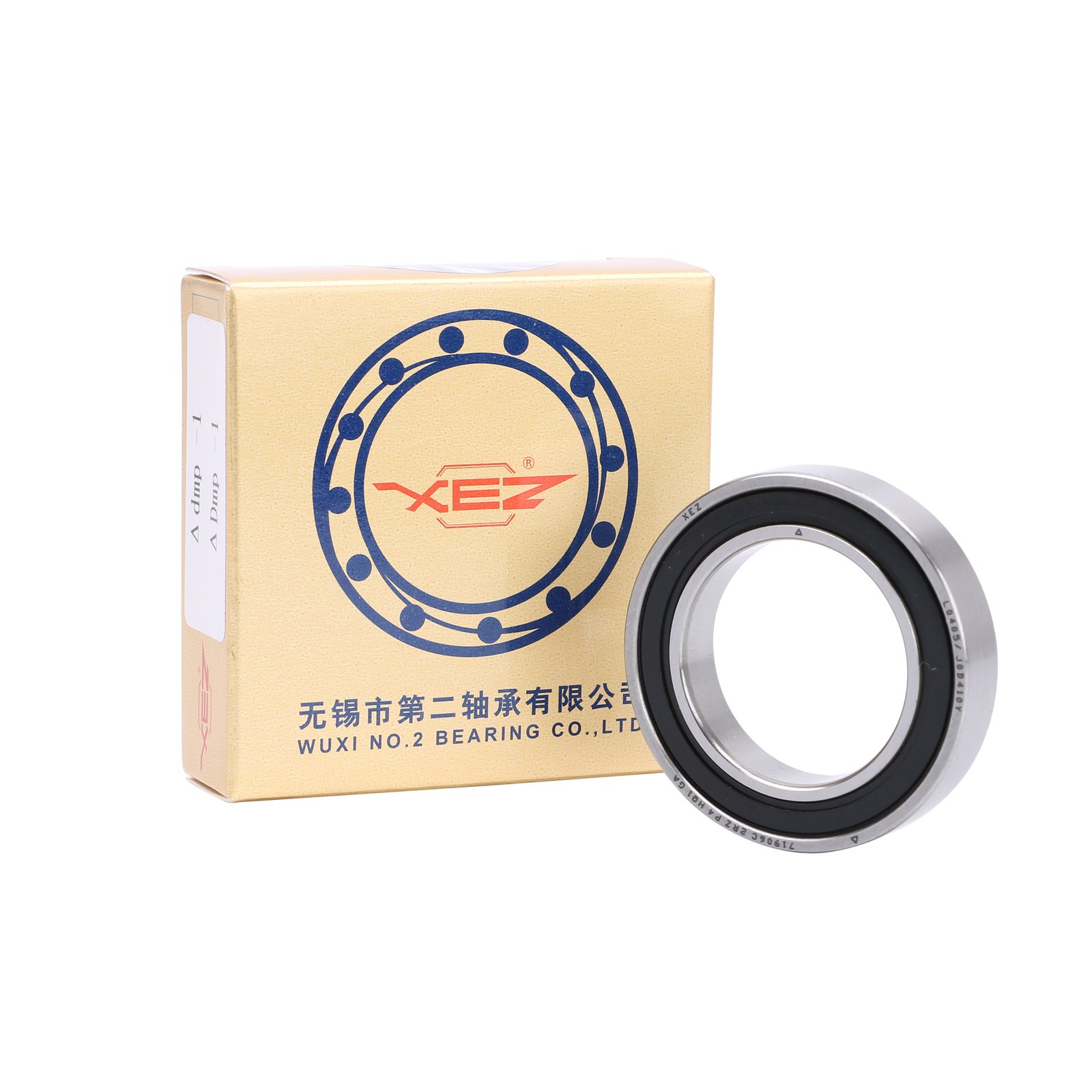

XEZ has been in research and manufacturing of machine tool spindle bearings from 1988, with the features of super precision, low temperature rise, long service life and low noise, which can reach 60000rpm and even higher speed. XEZ sealed spindle bearings are with grease inside, which can last for a long time. Users do not need to add any grease or oil by themselves, easy and convenient for operation and maintenance.
| Dimension | 30*47*9mm |
|---|---|
| Limted Speed | 36000 rpm (grease), 53000 rpm (oil) |
| Pairing | DB, DF, DT, TBT, TFT, TT, QBC, QFC, QT, QBT, QFT |
| Level | P2, P4, P4S, P5 |
| Weight | 0.046KG |
XEZ 71900 series is a typical series in machine tool spindle bearings, which can bear radial load and axial load at the same time. A thin race ensures the bearing can reach higher speed. High-quality ceramic balls are available with Chrome steel races so that bearings can be super accurate and long-lasting. Machine tool spindle bearings can be offered in standard sizes or customized sizes.
TECHNICAL DETAILS
APPLICATIONS
FACTORY OVERVIEW
Except for the 71900 series, XEZ also supplies 7000 series, 7200 series, TAC series spindle bearings, please see the below chart for more size information.
| XEZ Bearing Model | d(mm) | D(mm) | B(mm) | r(mm) | r1(mm) | Basic Loading (KN) Cr | Basic Loading (KN) Cor | Limiting speed (r/min) Grease |
|---|---|---|---|---|---|---|---|---|
| 7000CP4 | 10 | 26 | 8 | 0.3 | 0.3 | 1.9 | 1.1 | 80000 |
| 7001CP4 | 12 | 28 | 8 | 0.3 | 0.3 | 1.86 | 1.12 | 70000 |
| 7002CP4 | 15 | 32 | 9 | 0.3 | 0.3 | 2.6 | 1.7 | 60000 |
| 7003CP4 | 17 | 35 | 10 | 0.3 | 0.3 | 2.65 | 1.83 | 53000 |
| 7004CP4 | 20 | 42 | 12 | 0.6 | 0.6 | 4.3 | 3.2 | 45000 |
| 7005CP4 | 25 | 47 | 12 | 0.6 | 0.6 | 4.36 | 3.45 | 38000 |
| 7006CP4 | 30 | 55 | 13 | 1 | 1 | 6.4 | 4.9 | 32000 |
| 7007CP4 | 35 | 62 | 14 | 1 | 1 | 6.8 | 5.85 | 28000 |
| 7008CP4 | 40 | 68 | 15 | 1 | 1 | 8.8 | 6.55 | 26000 |
| 7009CP4 | 45 | 75 | 16 | 1 | 1 | 9.15 | 8.5 | 24000 |
| 7010CP4 | 50 | 80 | 16 | 1 | 1 | 12.9 | 9.15 | 22000 |
| 7011CP4 | 55 | 90 | 18 | 1.1 | 1.1 | 13.4 | 13.2 | 19000 |
| 7012CP4 | 60 | 95 | 18 | 1.1 | 1.1 | 13.7 | 14 | 18000 |
| 7013CP4 | 65 | 100 | 18 | 1.1 | 1.1 | 18 | 15 | 17000 |
| 7014CP4 | 70 | 110 | 20 | 1.1 | 1.1 | 18 | 19.6 | 16000 |
| 7015CP4 | 75 | 115 | 20 | 1.1 | 1.1 | 18.3 | 20 | 15000 |
| 7016CP4 | 80 | 125 | 22 | 1.1 | 1.1 | 21.6 | 24.5 | 14000 |
| 7017CP4 | 85 | 130 | 22 | 1.1 | 1.1 | 22 | 25 | 13000 |
| 7018CP4 | 90 | 140 | 21 | 1.5 | 1.5 | 26 | 30 | 12000 |
| 71900C | 10 | 22 | 6 | 0.3 | 0.1 | 3 | 1.53 | 90000 |
| 71901C | 12 | 24 | 6 | 0.3 | 0.3 | 3.35 | 1.86 | 80000 |
| 71902C | 15 | 28 | 7 | 0.3 | 0.3 | 5 | 2.9 | 67000 |
| 71903C | 17 | 30 | 7 | 0.3 | 0.3 | 5.3 | 3.15 | 60000 |
| 71904C | 20 | 37 | 9 | 0.3 | 0.3 | 7.35 | 4.55 | 50000 |
| 71905C | 25 | 42 | 9 | 0.3 | 0.3 | 8.15 | 5.7 | 43000 |
| 71906C | 30 | 47 | 9 | 0.3 | 0.3 | 8.65 | 6.55 | 36000 |
| 71907C | 35 | 55 | 10 | 0.6 | 0.6 | 11.8 | 9.5 | 32000 |
| 71908C | 40 | 62 | 12 | 0.6 | 0.6 | 17.6 | 13.7 | 28000 |
| 71909C | 45 | 68 | 12 | 0.6 | 0.6 | 18.6 | 15.6 | 24000 |
| 71910C | 50 | 72 | 12 | 0.6 | 0.6 | 19 | 16.6 | 22000 |
| 71911C | 55 | 80 | 13 | 1 | 1 | 22.8 | 20.4 | 20000 |
| 7200CP4 | 10 | 30 | 9 | 0.6 | 0.6 | 5.85 | 2.9 | 70000 |
| 7201CP4 | 12 | 32 | 10 | 0.6 | 0.6 | 7.65 | 3.9 | 63000 |
| 7202CP4 | 15 | 35 | 11 | 0.6 | 0.6 | 9.65 | 5 | 56000 |
| 7203CP4 | 17 | 40 | 12 | 0.6 | 0.6 | 10.8 | 5.85 | 50000 |
| 7204CP4 | 20 | 47 | 14 | 1 | 1 | 14.6 | 8.15 | 43000 |
| 7205CP4 | 25 | 52 | 15 | 1 | 1 | 15.6 | 9.3 | 36000 |
| 7206CP4 | 30 | 62 | 16 | 1 | 1 | 23.2 | 14.6 | 30000 |
| 7207CP4 | 35 | 72 | 17 | 1.1 | 1.1 | 25.5 | 18 | 26000 |
| 7208CP4 | 40 | 80 | 18 | 1.1 | 1.1 | 32 | 22.4 | 24000 |
| 7209CP4 | 45 | 85 | 19 | 1.1 | 1.1 | 33.5 | 24.5 | 22000 |
| 7210CP4 | 50 | 90 | 20 | 1.1 | 1.1 | 43 | 31.5 | 20000 |
