XEZ uses only high-quality materials and advanced production processes to manufacture all components of high-precision spindle ball bearings. The highest quality standards ensure the best process performance and optimized service life of XEZ products.

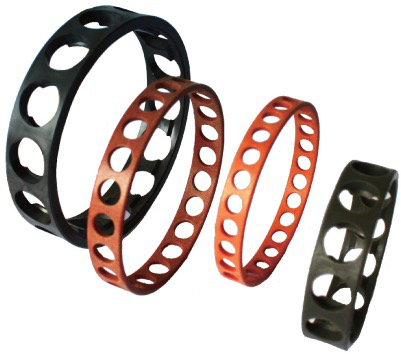

T-shaped cage
Material
Layered phenolic resin
Phenolic resin with fine mesh cotton webbing
Allowable operating temperature
120 °C
Cage guide
The cage is guided to the outer ring side
Manufacture
Machining
Application
For high-speed series bearings
General purpose
Manufacture
A low coefficient of friction can be used for oil lubrication and grease lubrication
TXP type cage
Material
Partially crystalline high-performance plastics
PEEK, reinforced carbon fiber
Allowable operating temperature
250 °C
Cage guide
The cage is guided to the outer ring side
Manufacture
Injection molding
Application
Cage optimized for grease lubrication
Manufacture
Low coefficient of friction
Reduce/eliminate the vibration of the cage
Excellent mechanical, chemical and thermal stability
Advantage
•High wear resistance
•Due to its excellent sliding and wear-reducing characteristics, it can still operate in harsh conditions
• Lower operating temperature due to low friction and more favorable tribology
•Storage of grease formed in the cage pockets provides continuous lubrication, Long service life
•Increase cost and benefit
